Model 5300 Dual-Label Pallet label printer applicator


5300 Dual-Label Pallet Label Printer Applicator

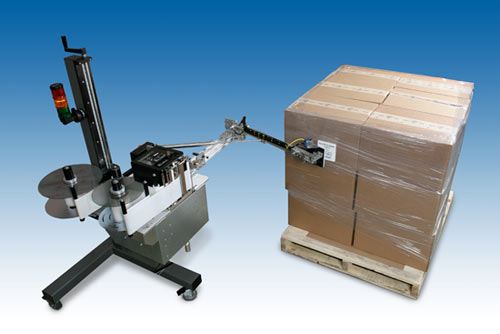

Model 5300 Dual-Label Pallet label printer applicatorWeber's Model 5300 Dual-Label pallet labeling system marries a high-performance thermal/ thermal-transfer label printer with a specially-engineered articulating swing-tamp applicator to perform the printing and two-label, adjacent-side labeling of pallets in line.

The 5300 Dual-Label Pallet labeling system can help you meet the requirements of customers that mandate shipping or identification labels on two or more sides of a pallet.



 Choose from a wide range of 203-, 300- and 600-dpi print engines
 Capable of handling print speeds up to 16 ips
 Numerous I/O's ease interfacing with external devices
 Monitor operation via a web browser
 A great way to add a labeler after your palletizer system
 Available with RFID capability




Features

5300 Dual-Label Pallet Label Printer Applicator

Model 5300 Dual-Label Pallet print apply systemDesigned and manufactured by Weber, the Dual-Label pallet labeling system features a selection of print engines, which includes both 203-, 300- or 600-dpi units from manufacturers like Zebra Technologies, SATO and Datamax. Print engines are available to handle pallet label sizes ranging from 4.0" wide and up to 8.0" long.

5300 label printer applicator featuresAll systems print pallet labels with variable-sized text, bar codes and/or graphic images. Various print speeds are programmable at up to 16 ips.

As a label is printed, it is automatically peeled from its liner and retained by vacuum on a non-contact, tamp-blow applicator pad. The articulating tamp pad is mounted on a pneumatically-operated swing arm that reaches across the leading side of a pallet as it approaches the Dual-Label unit via conveyor. When the pallet is in position, a sensor mounted on the swing arm detects the pallet and the label is gently blown onto the lead panel of the pallet.

The swing-arm then retracts to collect a second printed label, which is followed by an articulated stroke that blows the label onto the adjacent side of the pallet to complete the cycle. Depending on a combination of label print engine, pallet size, conveyor speed and the proximity of the Dual-Label system to the pallet, up to five pallets per minute can be labeled.

Special Features & Options

The Model 5300 Dual-Label Pallet system includes a number of noteworthy features that add to the operational versatility of this printer-applicator.

• Air-blow application. This is method of air-assisted, fixed-distance label placement can be used with standard applications. A printed label is fed into place and held by vacuum, then it is blown onto a product or package to a placement accuracy of ±0.03".

Model 5300 label printer applicator controllerModel 5300 controller

Browser-based monitoring. The status of all operational functions and configurations can be monitored by logging on to a web page that is unique to each Model 5300 unit.

Numerous I/O's. The system can be interfaced with many types of external devices.

One-to-one media consumption. Special label unwind and rewind dimensions are matched to the system's ribbon supply to ensure they are consumed at the same rate, reducing downtime and eliminating partial changeovers.

Print job storage. Multiple label printing formats can be stored in the system's memory, making it easier for an operator to select a job directly from the applicator instead of downloading a computer file.

The Model 5300 Dual-Label Pallet label printer applicator boasts numerous additional features as well, including an upgradeable microprocessor controller, various inputs/outputs, plus durable construction that will withstand harsh industrial environments.

There also are several optional enhancements that can increase the system's functionality. A product height sensor, for example, enables the printer-applicator to label items of varying heights delivered by the same conveyor.

Other options include a 15-foot umbilical connection that enables the remote location of the unit's controller; an adjustable stand for optimum system orientation; label-on-pad and product-presence sensors; plus beacon light alerts to signal the status of label and ribbon supplies.

Specifications


Dimensions
29.92"L x 27.25"W x 28.25"H
(75.9cm x 69.2cm x 71.8cm)

Weight
174 lbs. (78.8kg)

Electrical
115 VAC, 60 cycle, 5 amps; overload protection built in 220 VAC, 50 cycle optional

Air Requirements
3 cfm at 90 psi

Product Sensing
Photoelectric

Communication Interface
RS-232-C; Centronics compatible

Product Sensing
Photoelectric

Processor
Rabbit 3000 Microprocessor

Printing Methods
Direct-thermal and thermal-transfer

Print Resolution
203, 300 or 600 dpi, dependent upon print engine selected

Label Roll Size
Maximum diameter 13.75" O.D. (350mm)

Labeling Speed
Contingent upon print engine and label size/content

Label Placement
Accurate to ±0.03" (.76mm) when labels are produced to specifications and product handling is controlled and consistent

Labels
Die-cut, waste removed with 0.125" (3mm) minimum separation between labels in running direction and 0.125" (3mm) maximum web over label width; direct or thermal-transfer

Labeling Software
Weber Legitronic® software

Print Characters & Bar Codes
Text: Selection of fonts, including OCR-A & B representation

Bar Codes: UPC-A/E, EAN-8/13, Code 39, I 2 of 5, Code 128, Codabar, MSI, 2 of 5, Code 93, UPC Bookland, Matrix 2 of 5, Postnet, UCC/EAN 128, PDF-417, Maxicode, Data Matrix
(Text and bar codes can be rotated 360 degrees; horizontal and vertical character expansion)

Max Print Width
• Zebra ZE500-4 203 and 300 dpi: 4.1" (104mm)
• Zebra ZE500-6 203 dpi: 4.1" (104mm)
• Zebra ZE500-6 300 dpi: 6.6" (168mm)
• Sato 8460SE: 6.0" (152.4mm)
• Sato 8485SE: 5.0" (127mm)
• Sato 8490SE: 4.4" (112mm)
• Sato S84 Series: 4.09" (104mm)
• Datamax A-4212: 4.094" (104mm)
• Datamax A-4310: 4.161" (105.7mm)
• Datamax A-4606: 4.157" (105.6mm)
• Datamax A-6212: 6.614" (168mm)
• Datamax A-6310: 6.401" (162.6mm)

Print Speed & Resolution
• Zebra ZE500-4 203 and 300 dpi: Up to 12.0"/second (305mm)
• Zebra ZE500-6 203 dpi: Up to 12.0"/second (305mm)
• Zebra ZE500-6 300 dpi: Up to 10.0"/second (254mm)
• SATO 8460SE: Up to 8.0"/second (203mm) @ 203 dpi
• SATO 8485SE: Up to 12.0"/second (305mm) @ 203 dpi
• SATO 8490SE: Up to 8.0"/second (203mm) @ 300 dpi
• SATO S84 Series: Up to 16", 14" or 6"/second (406mm, 355.5mm, 152.4mm) @ 203, 300 or 600 dpi
• Datamax A-4212: Up to 12.0"/second (305mm) @ 203 dpi
• Datamax A-4310: Up to 10.0"/second (254mm) @ 300 dpi
• Datamax A-4606: Up to 6.0"/second (152mm) @ 600 dpi
• Datamax A-6212: Up to 12.0"/second (305mm) @ 203 dpi
• Datamax A-6310: Up to 10.0"/second (254mm) @ 300 dpi

Label Width Range
• Zebra ZE500-4 203 and 300 dpi: 0.625" (16mm) to 4.5" (114mm)
• Zebra ZE500-6 203 dpi: 0.625" (16mm) to 4.5" (114mm)
• Zebra ZE500-6 300 dpi: 0.625" (16mm) to 7.1" (180mm)
• Sato 8460S: Max 6.5" (165.1mm); Min 1.0" (25.4mm)
• Sato 8485SE: Max 5.25" (133.3mm); Min 1.0" (25.4mm)
• Sato 8490SE: Max 5.25" (133.3mm); Min 1.0" (25.4mm)
• Sato S84 Series: Max 5.1" (129.5mm); Min 0.5" (12.7mm)
• Datamax A-4212: Max 4.65" (118mm); Min 1.0" (25mm)
• Datamax A-4310: Max 4.65" (118mm); Min 1.0" (25mm)
• Datamax A-4606: Max 4.65" (118mm); Min 1.0" (25mm)
• Datamax A-6212: Max 6.7" (170mm); Min 2.0" (50mm)
• Datamax A-6310: Max 6.7" (170mm); Min 2.0" (50mm)

Optional Features
• Adjustable Stand
• RFID upgradeable print engine
• Label-on-pad sensor
• Product-presence sensor
• Beacon alert lights
• QuPallet load delivery systems
