Labeling System Shuttle Feeder & Vacuum Transport

The Kirk-Rudy Shuttle Feeder is a high-speed, off-line feed and transport system for use with Weber pressure-sensitive label printer-applicators and label applicators.

It's the easy and accurate way to feed your flat products like knocked-down cartons, pouches and inserts into an automated labeling system. You can stack up a large quantity of products in the shuttle feeder and they will be evenly dispensed down the line for labeling by a Weber printer-applicator system located over the end of the Kirk-Rudy transport.

Download Overview Brochure  arrow

Contact Weber
  arrow

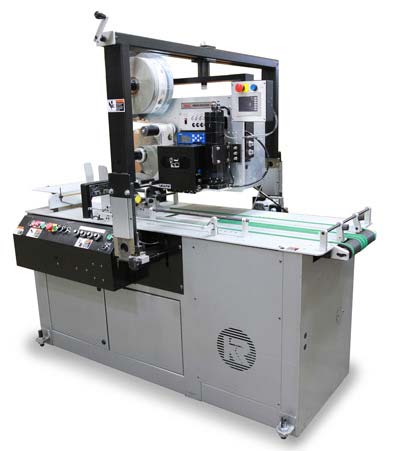

Kirk Rudy shuttle feeder for labeling systems

Features

Shuttle-Feed & Vacuum Transport

Weber's Model KR 215 IJ from Kirk-Rudy is capable of feeding and conveying a wide variety of materials at up to 600 fpm. It's an ideal high-speed, off-line feed and transport system for use with Weber pressure-sensitive label printer-applicators and applicators.

The Model KR 215 IJ is a perfect solution for feeding knock-down chipboard and corrugated cartons. Its fully adjustable hopper quickly and easily adapts to a full range of carton sizes. And the unit's load-from-the-top, feed-from-the-bottom design keeps jobs running smoothly and non-stop.

The system is available in a number of configurations and includes a diverse selection of options and attachments.

Specifications

Shuttle Feeder & Vacuum Transport

Dimensions
60"L x 33"H x 30"W
(1524mm x 838.2mm x 762mm)

Electrical Requirements
220VAC, 20 amps, 50/60Hz, Single Phase

Feed Rate
Up to 600 fpm (182.8M)

Stock Sizes
Min 3"W x 5"L (76.2mm x 127mm)
Max 17"W x 14"L (431.8mm x 355.6mm)

Max Thickness
.62" (15.75mm)

Features
All timing belt drive
Quick-release jam kit
Semi-automatic lubrication system
Easy-change tabletop belt design

Options

Vacuum tabletop
Dual motor package
20", 36", 58" extensions (508mm, 914.4mm, 1473.2mm)
24", 30", 36" wide product kit (609.6mm, 762mm, 914.4mm)
Tabletop holdback/pusher lug
Overhead mounts for labeling heads
Counter
Divert
Friction feeder
Autoloader
